BG-4 Video Generator

Products > Video Generators > BG-4

Multiple Output Black Burst Generator with Full Field Color Bars option

The BG-4 Black Burst Generator has four microprocessor controlled, digitally generated, stable black burst outputs suitable to drive Genlock inputs of the equipment in an edit suite. There is also a 1 kHz tone output, either balanced or unbalanced. The Model BG-4CB includes selectable black burst / full field color bars, plus NTSC/PAL operation. $


Options: Y/C (S-video/S-VHS/Hi8), Rack mount. $

Follow $ symbols to price list.

Download manual

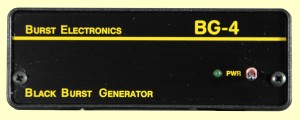

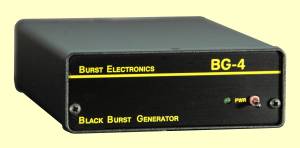

BG-4 with balanced tone

Specifications - BG-4 Video Generator

Output: 1 volt standard video NTSC (PAL)
Output Impedance: 75 Ohms 1%
Sync Tip: -40 IRE
Burst: +/-20 IRE, 3.579545 MHz (PAL: 4.433619 MHz)
Setup: 7.5 IRE NTSC (0 IRE PAL)
Full Field Color Bars (BG-4CB)
Video Output Connector: BNC (Y/C: 4 pin MiniDIN)
Audio Output:
    Unbalanced RCA (1 kHz, 0 dBm, 1% THD)
    Balanced MiniXLR (1 kHz, +4 dBm, 1% THD)
Output Protection: Open or Short, infinite duration

Black Burst: Sync, Color Burst and 7.5 IRE Setup
Dimensions: 4.2W x 1.5H x 5.5D (inches)
Wall module (included): 120 Vac 60 Hz, 12 Vdc 500 mA, UL Listed
DC Powered: 11-18 Vdc
Warranty: Two Years Parts and Labor
